HH9801A

HH9801A wire rope tension sensor

Application: widely used in ship, dock, crane industry

Range specification: 1T 2T 3T 5T

Features: the elastomer of HH9801A steel wire rope tension sensor is made of high quality stainless steel, specially designed for testing the tension of steel wire rope, with high reliability, good interchangeability, easy to use and other characteristics

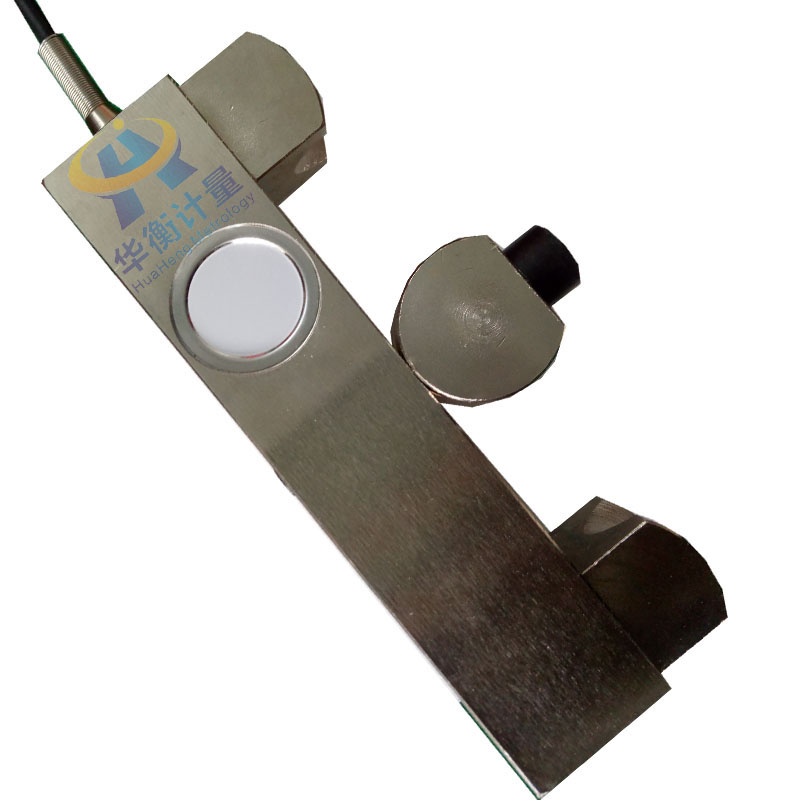

Product pictures:

Technical parameters:

Comprehensive accuracy: 1%

Sensitivity: 2.0MV/V

Supply voltage: 12, 24 DC

Creep: + / - 0.02 ~ 0.03% F.S / 30 min

Zero output: 1%F.S

Zero temperature effect: + / - 0.02 ~ 0.03% F.S / 10 ℃

Output temperature effect: + / - 0.02 ~ 0.03% F.S / 10 ℃

Working temperature: - 20 ℃ ~ + 70 ℃

Input resistance: 380 Ω

The output resistance: 350 Ω

Insulation resistance: 5000 m Ω

Safety overload: 150%F.S

Cable color: red + black - yellow + white -

Remark:

1. If there are special requirements for the line length, it can be provided according to customer requirements

2. If the sensor size does not meet the requirements, it can be customized according to the customer's requirements
