HHSW03

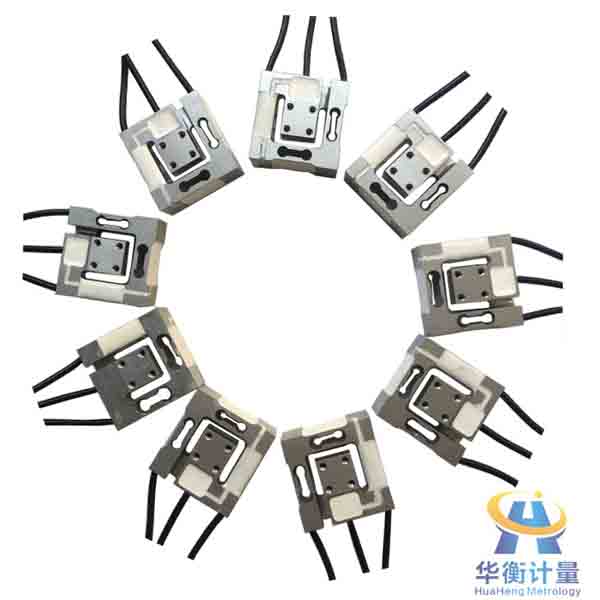

3D force sensor HHSW03

Product Introduction：

Application field: Mechanical arm, gripping force, robot sensing, remote control testing, simultaneous three-directional X/F/Z force measurement

Product range: 10N, 20N, 30N, 50N, 100N

Features: HHSW03 3D force sensor, elastomer made of high-quality aluminum alloy for easy installation

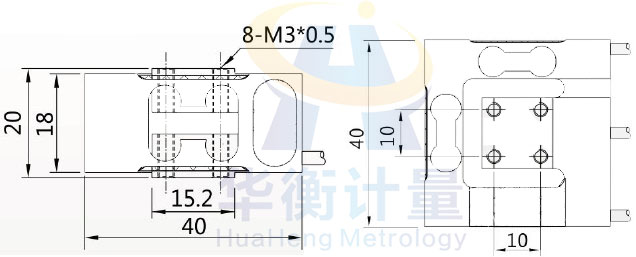

Installation dimension diagram (unit: mm)

Technical indicator details:

Rated output: 1.0±0.2mV/V

Comprehensive accuracy: ≤0.05%F.S

Excitation voltage: 5~10V DC

Zero output: ±2%F.S

Non-linearity: ±0.05%F.S

Hysteresis: ±0.05%F.S

Repeatability: ±0.03%F.S Creep: ±0.05%F.S

Safe overload: 120%F.S

Ultimate overload: 150%F.S

Temperature compensation range: -5℃~+40℃

Operating temperature range: -5℃~+40℃

Zero temperature drift: ≤0.05%F.S

Sensitivity temperature drift: ≤0.05%F.S

Input resistance: 350Ω±5Ω

Output resistance: 350Ω±5Ω

Insulation resistance: ≥5000Ω (100V DC)

Wiring method: Red +, Black -, Green +, White -, Blue +, Yellow

 If there are special requirements for the wire length, it can be provided according to customer requirements.
