HHSW05

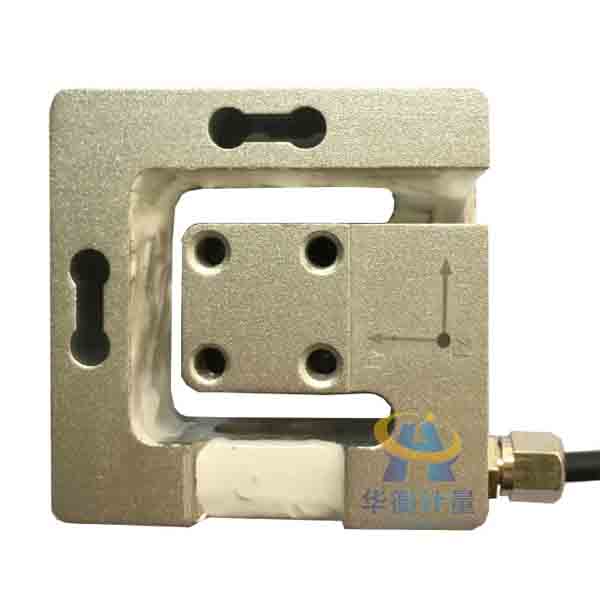

Three-component force sensor HHSW05

Product Introduction：

Application field: Mechanical arm, gripping force, robot sensing, remote control testing, simultaneous three-directional X/F/Z force measurement

Product range: 100N, 200N, 300N, 500N, 1000N 2000N

Features: Three-component force sensor HHSW05, elastomer made of high-quality aluminum alloy for easy installation

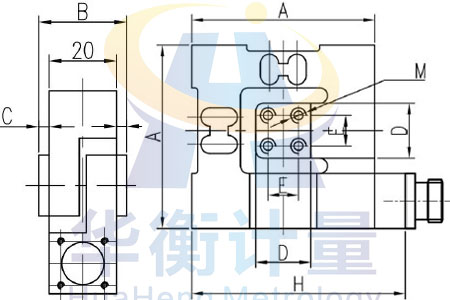

Installation dimension diagram (unit: mm)

Technical indicator details:
Rated output: 1.0±0.2mV/V
Comprehensive accuracy: ≤0.05%F.S
Excitation voltage: 5~10V DC
Zero output: ±2%F.S
Non-linearity: ±0.05%F.S
Hysteresis: ±0.05%F.S
Repeatability: ±0.03%F.S Creep: ±0.05%F.S
Safe overload: 120%F.S
Ultimate overload: 150%F.S
Temperature compensation range: -5℃~+40℃
Operating temperature range: -5℃~+40℃
Zero temperature drift: ≤0.05%F.S
Sensitivity temperature drift: ≤0.05%F.S
Input resistance: 350Ω±5Ω
Output resistance: 350Ω±5Ω
Insulation resistance: ≥5000Ω (100V DC)
Wiring method: Red +, Black -, Green +, White -, Blue +, Yellow
 If there are special requirements for the wire length, it can be provided according to customer requirements.
Force sensor, load cell, 3D force sensor, tension/compression sensor, multi-channel weight transmitter, force control instrument, weight amplifier

Special note: Product information is for reference only and is subject to change without notice. Please refer to the actual information.
