HH801 type weight transmitter
Simple structure, easy to use, reliable work, compact size, can be conveniently embedded in a variety of
Application systems.Two-stage amplification circuit is adopted, the zero point and the gain stage are adjusted independently, the zero point is not affected when the gain is changed, the field adjustment is more convenient, the two-stage amplification circuit can improve the stability of the instrument amplifier under the condition of high gain
Technical parameters:
Power supply: dc 15~24V
Sensor excitation power supply (internal output of weight transmitter) : 5V, 50mA
Comprehensive accuracy: better than 0.1% FS
Frequency response: 1kHz
Adjustable range: 0.5MV-4MV
Operating temperature range: 0 ℃ to 40 ℃
Zero range: -15mv ~15mV
Adjustable magnification range: 280~2500
Output range: 0-5v, 0-10v, 4-20ma
Load: 10 k ≧ Ω
Case material: metal case protection grade: IP66

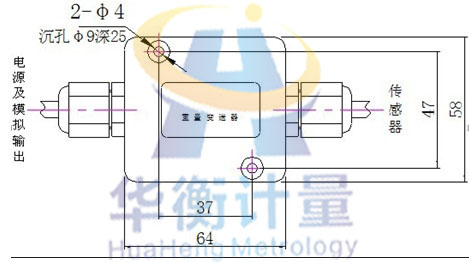

Overall dimensions: 64X58X35mm
Hua heng measurement main business: force sensor, weighing sensor, tension pressure sensor, force measurement control instrument, weight amplifier, force meter
To undertake non - standard force weighing sensor custom force sensor of all kinds
Special notice: the product information is for reference only, subject to change without notice, please refer to the actual information.
