Force Sensor

HH8204A25

Product description: forec Sensor HH8204A25
INQUIRY

Features＆Applications
Small size
Small deformation,low height
High quality stainless steel
Easy to install,fast
Surface electrolytic corrosion protection
Suitadle for linited space automation equipment
force detection and control of small devices
Capacity:10KG 20KG 50KG

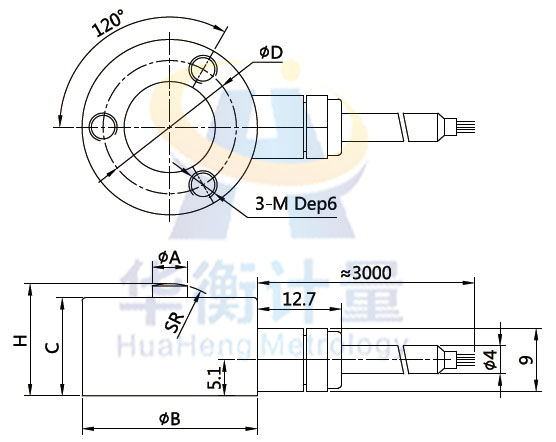

Product Size:

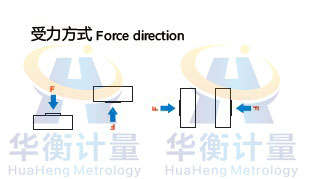

Force direction:

Specification:
Rated Output:2.0±0.2mv/v
Total Accuracy:≤0.5%of rated output
Excitation:5~12V DC/AC
Zero Balance:±2% of rated output
Nonlinearity:±0.5% of rated output
Hysterrsis:±0.5% of rated output
Repeatability:±0.3% of rated output
Creep(30min):±0.5% of rated output
Safe Overload:120%
Ultimate Overload:150%
Compensated Temp.range:-10℃to+40℃
Operating Temp.range:-30℃to+70℃
Temp.Shifr Zero:≤0.05% of rated output/℃
Temp.Shift Span:≤0.05% of rated output/℃
Input Resistance:350Ω+50Ω
Output Resistance:350Ω+30Ω
Insulation Resistance:≥5000MΩ(100V DC)
Ingress Protection:IP65
Cable Color:Red(E+) Black(E-) Green(S+) White(S-)

Schematic:
